Build a Chaos Generator Module!

Hosted by Żłob Modular
Sunday, Sept 10 @ 2pm
Difficulty: Beginner/Easy

Triple Cap Chaos Module Build

The Triple Cap Chaos(C^3 Chaos) is a 2hp analog, chaos based, noise oscillator, pseudo ring modulator/harmonics generator, and audio mangler. It is a unique module, like the Diode Chaos, because it has never existed as a musical instrument until now. There is also no other module to my knowledge that can do exactly what the Triple Cap can do. The circuit (with several modifications) is based on the paper “Simple Autonomous Chaotic Circuits” by J.C. Sprott and Jessica R. Piper. As opposed to the Diode Chaos that generates control voltage this module focuses on the audio rate.

The “Emanate” potentiometer controls the coarser overall spectrum of the chaos, from lots of activity counter clock wise up to less chaos and more of a steady oscillation. The “Width, CV ATT” potentiometer can be thought of as more of a fine control for the chaos/oscillator. When something is inserted into the “CV” in the voltage normalization from the width knob is broken and the potentiometer now acts as an attenuator for the incoming cv. The Triple Cap is not a traditional volt per octave exponential VCO, and has a sort of narrow frequency range to exploit the chaotic behavior.

It expects a +5v to -5v max signal in to modulate the chaos. The “IN” jack is an A.C. coupled input for audio in, although cv and audio can work for both the “CV” in jack and “IN.” The “IN” will interfere and interact with the onboard chaotic oscillator depending on the frequency of the input, which may take some experimentation. It can create ring mod ish sounds, to added harmonics, to almost bit crushed sounds depending on the “X” or “Y” output. The “X” output is a more windy noisy sinusoidal based output and the “Y” output is more squared off and aggressive, harsher sounding output.

Some quirks about the Triple Cap: The “X” output can offset negatively or positively a little bit depending on the pot settings, but both outputs tend to stay around 10vpp. With the “Emanate” and “Width” pots all the way up the typical frequency will be around 150hz although some will reach 200hz at this setting. With the “Emanate” pot full counter clock wise “Width” pot full clock wise the frequency will be around 250hz. It is possible to send signals into the triple cap that can bring it out of the desired range causing the oscillation to cut out.

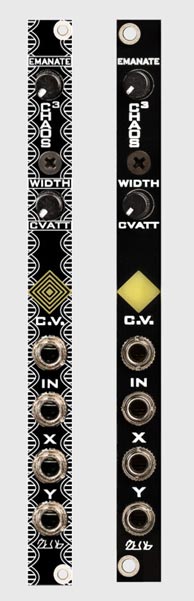

The module comes with a double sided panel one side is classic with the traditional graphics and the reverse side is soulless with no graphics, only text(not pictured).

Learn to solder! Żłob Modular will teach you basic soldering techniques and lead you through building the Triple Cap Chaos module.

TO PARTICIPATE IN THIS WORKSHOP
You will need to purchase the $40 Triple Cap Chaos kit from Żłob Modular HERE. Please select the "Knobcon DIY Workshop 23" option and the "DIY Workshop Pickup" option during checkout to avoid paying shipping.

Some kits may be available for purchase on-site, however, you can secure your place in the workshop by pre-ordering your kit.

Panel is reversible!
